This is one of the two strongest sets of a arms for the Maverick R bar none, the other set being the Pro Rock a arms. These arms were built to be lighter and stronger than the Pro Rock a arms weighing in at 8lbs less per piece than the Pro Rock arms, but have less clearance for desert racing, dune, and short course applications. This allowed us to maximize strength between the spindle and shock mount, where the arm sees the most stress. Paving the way with true innovation, we went all out on the development and design of these arms to address everything that we saw fit and also added a new feature never done before. We started producing ultra high clearance a arms in 2013 for the original Maverick. Through the last decade of trail riding, racing and winning through the most abusive terrain we've taken nearly everything we've learned and incorporated it into these arms. These are built to conquer the desert and the race track.
Features and tech:

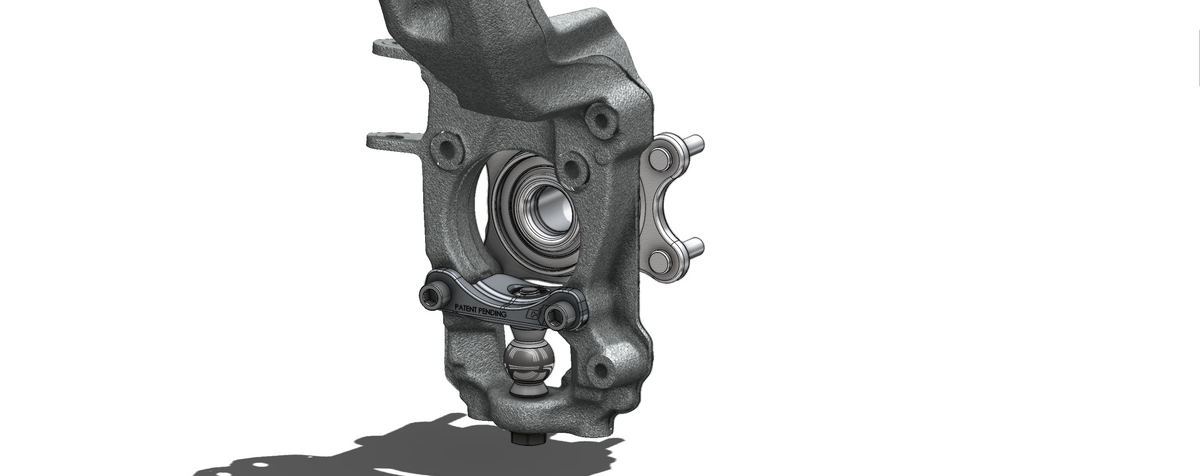

-Bringing unmatched strength to the spindle mounting, these feature a patent pending bolt on double shear spindle mount to the stock spindles with 7/8" FK uniballs.
-14mm mounting hardware to the spindle vs the stock 12mm stud on the stock balljoints.
-With strength being the primary focus these arms have 1.5" increase of clearance over stock while allowing clearance for larger aftermarket axles.
-100% 4130 chromoly construction and 100% tig welded
-O ring sealed a arm bushings using the same ultra durable bushing material we've used for years on the X3, with 17-4 heat treated stainless steel pins and caps for unrestricted movement and resistance through the travel.
-Ramped, double layered front bash face to help slide over obstacles
-Bushing barrels are wrapped with a layer of chromoly plate for extra strength at the frame
-Rerouted brake lines for protection
-Recessed front sway bar mounting point to protect hardware, double shear brackets for stronger mounting. We are using a mounting width of 1.412" wide and this is the same width as an X3 radius rod. Sway bar links are NOT included with the arms.
-With the focus of this being a race arm, we prefer to ship these bare and get coated with a product like Steel-It. We can powder coat these if needed and we may off this service on this product down the road. If you would like these arms, and you would like them powder coated please give us a call and we'll gladly do it for you.
Current lead time - in stock bare
